New Jersey Barriers (Precast Concrete)

01Overview

Our precast concrete barriers are manufactured for durability and versatility, making them ideal for retaining walls, landscaping and other engineering applications.

Cast in Concrete Class 30 and available in five standard types, each barrier can be supplied with delineators attached for road-safety use.

02Interactive 360° view

Drag to rotate, scroll to zoom and inspect the barrier from every angle.

3D model: “Jersey Barrier” by Digital BIM Solutions on Sketchfab.

03Dimensions & types

Five standard barrier types. All measurements in centimetres (cm).

Type	A (cm)	B (cm)	H (cm)	Length (cm)
1	20	60	80	200
2	30	80	100	200
3	30	80	118.5	200
4	35	85	126.5	200
5	20	50	75	250

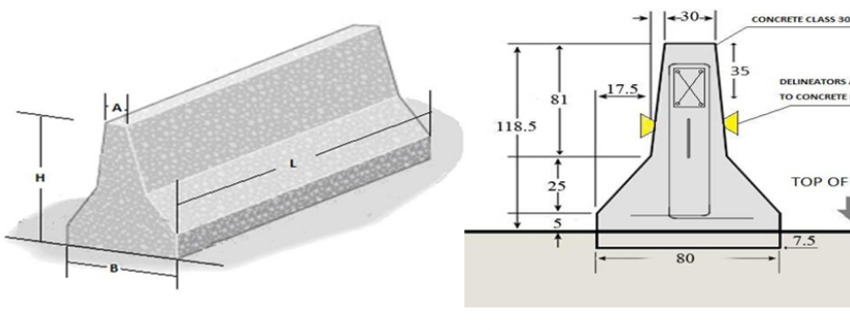

Jersey barrier engineering diagram — Cross-section — Concrete Class 30, with delineators attached to the barrier. A = top width, B = base width, H = height.

04Features

Cast in durable Concrete Class 30.
Delineators can be attached for night-time road visibility.
Interlocking, easy to transport, position and relocate.
Five standard types to suit different containment levels.

05Applications

Highway lane separation and work-zone protection.
Retaining walls and slope stabilisation.
Landscaping and site perimeter security.
